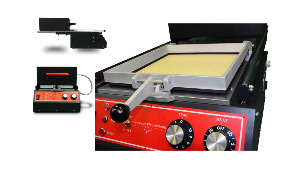

EZ-FORM BRAILON DUPLICATOR

To this day, the E-Z Thermoform Machine is the most accurate way to reproduce Braille Text and tactile graphics. Safe and easy to use, the EZ-Form makes permanent and inexpensive teaching aids and Braille copies from a single master and Brailon®.

ECH SPECS

Maximum Forming Area:

One inch less than each dimension of sheet

Frame & Sheet sizes:

11×11.5″
9.75×11.5″
8.5×11″
21×29.7cm / A4

Electrical:

Voltage: 115V or 220V (+/- 10%), 50/60 Hz
Current: 115V: 15A max
220V: 8A max

Measurements:

Height: 16”
Width: 16.25”
Length: 28″ with oven closed, 37” with oven open
Weight: 50 pounds

Maxi-Form is CE Certified for International usage

ADDITIONAL INFORMATION

WEIGHT 50 lbs
DIMENSIONS 16.25 x 23 x 28 in
VOLTAGE EZ-Form Machine 110V, EZ-Form Machine 220V
